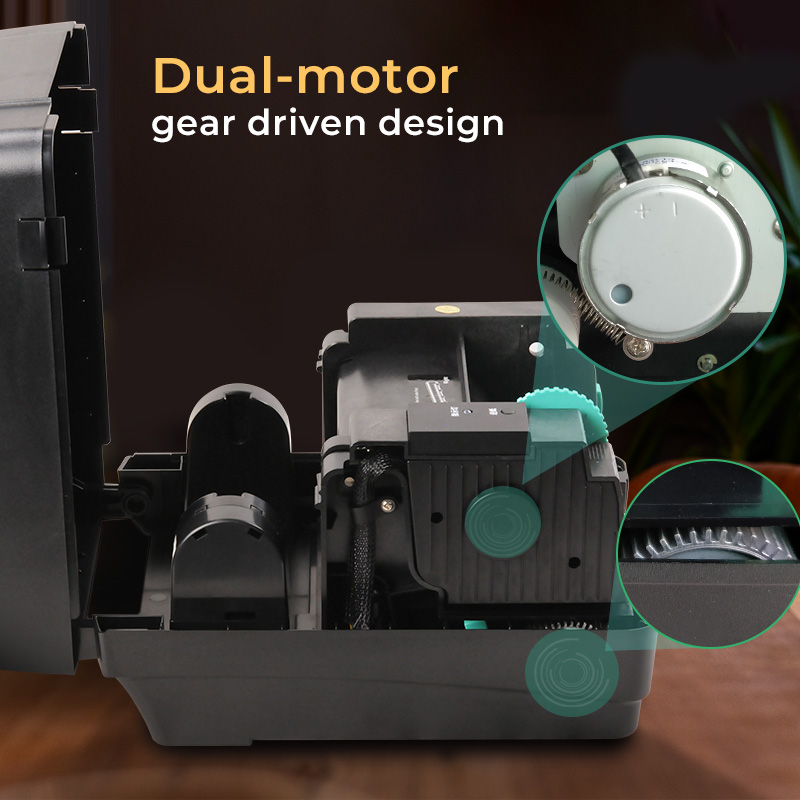

• Dual-motor gear driven design
• 127 mm (5″) inches per second print speed

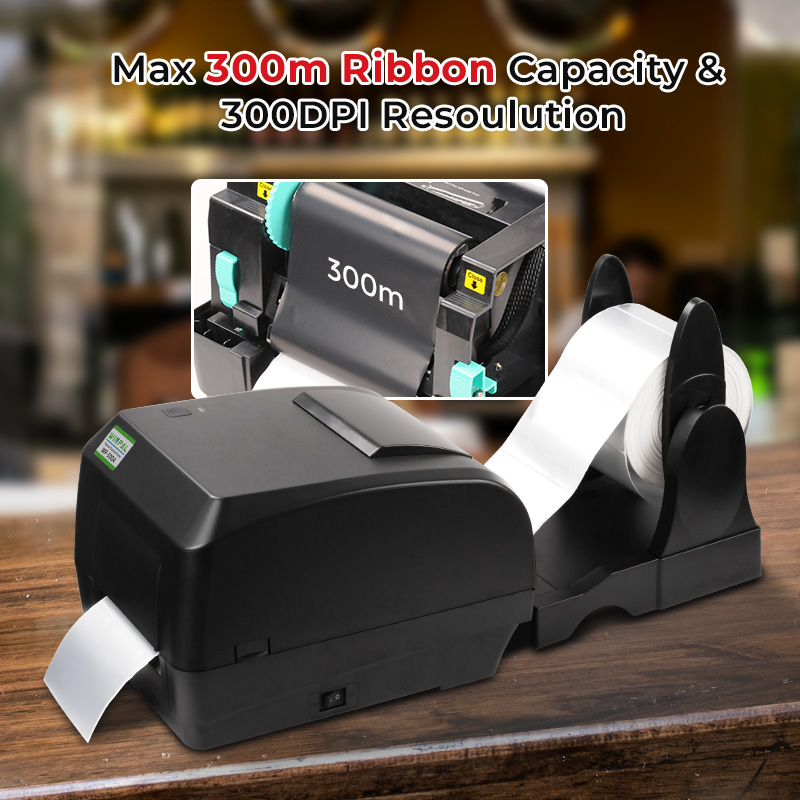

• 300 meter (984′) ribbon supply on a 25.4 mm (1″) core (coated side out) USB 2.0
• Print mechanism for kiosk application
• 200 MHz 32-bit RISC processor with 8 MB SDRAM, 4 MB Flash memory
| Printer Specifications | ||
| Resolution | 203 DPI | 300 DPI |

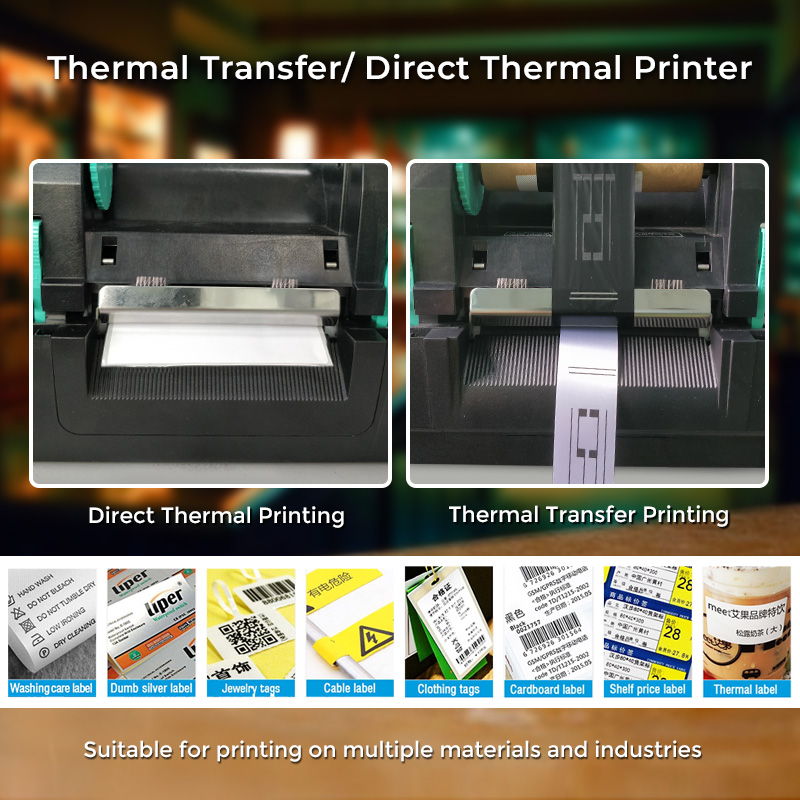

| Print method | Thermal Transfer/Direct Thermal | |
| Commands | TSPL、EPL、ZPL、DPL | |

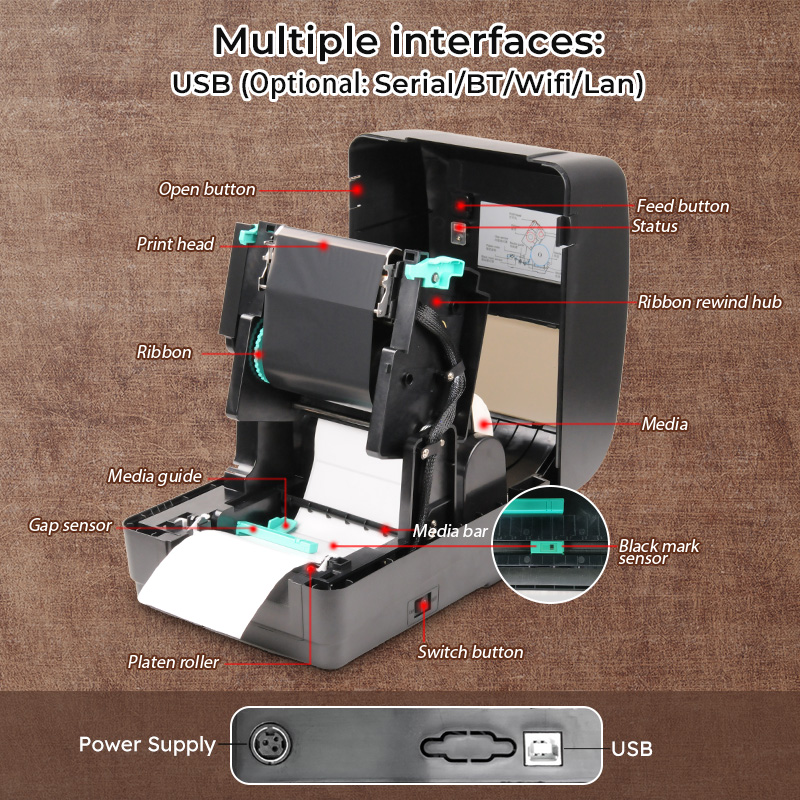

| Interface | USB (optional: Serial/LAN/Bluetooth/WIFI) | |
| Max.Print speed | 127 mm(5″)/s | 101.6mm(4″)/s |
| Max.print width | 108 mm(4.25″) | 104mm(4.09″) |
| Max.print length | 2286 mm(90″) | 1016mm(40″) |
| Media | ||
| Media type | Continuous, gap, black mark, fan-fold and punched hole | |
| Media width | 25.4-118mm(1.0″-4.6″) | |
| Media core diameter | 0.06~ 0.254 mm (2.36~ 10″ mil) | |
| Label length | 10~2,286mm(0.39″~90″) | |
| Ribbon capacity | Max.300 m | |
| Ribbon width | 110mm | |
| Physical Features | ||
| Weight | 2.6 kg | |
| Dimension | 302.5 mm (D) x 234 mm (W) x 194.8 mm (H) | |
