• Built-in large-capacity paper bin, and can be connected to an external paper bin

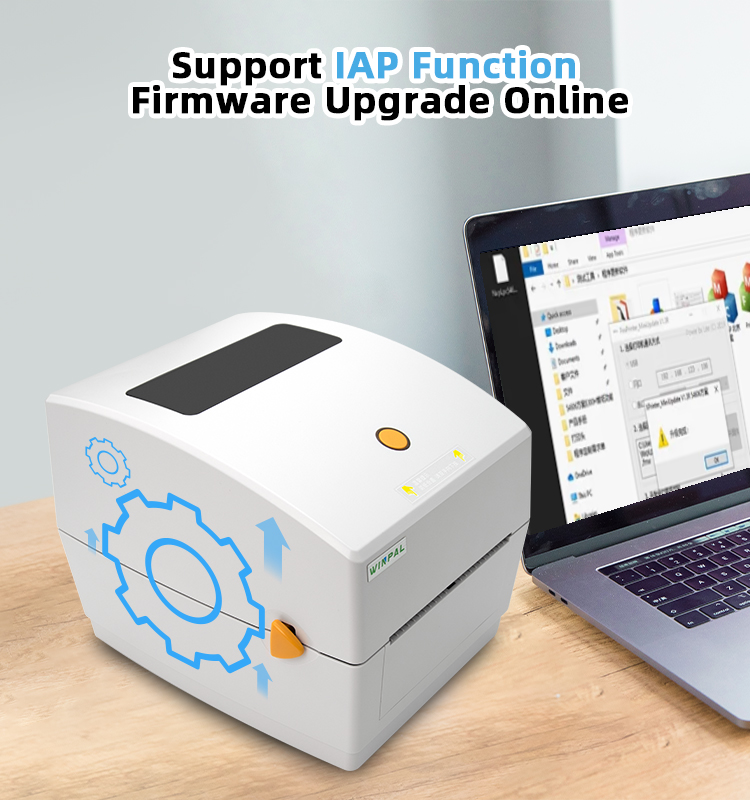

• Support IAP online upgrade

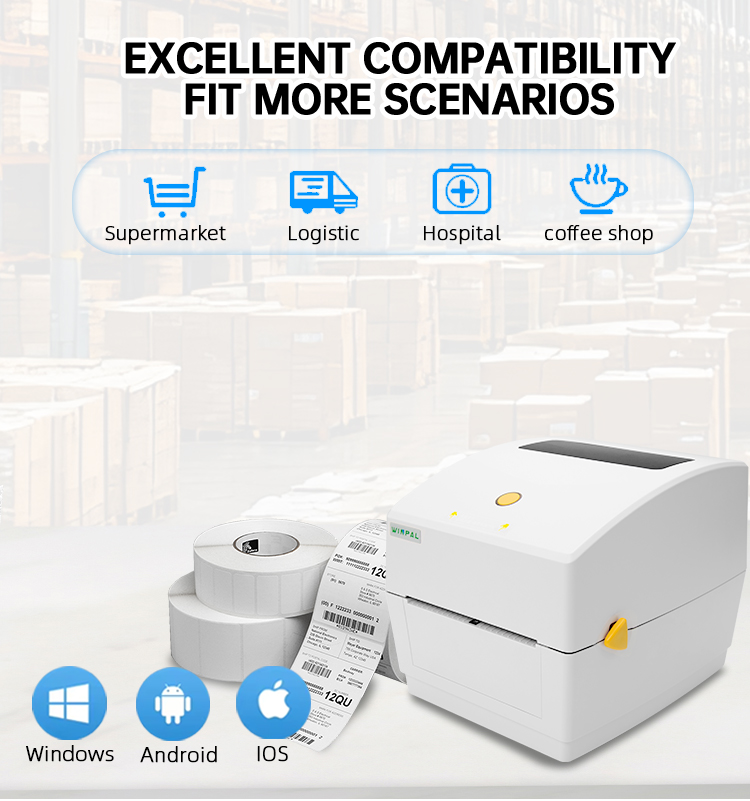

• Support Windows system driver, Android, IOS system
• Optional Bluetooth protocol transmission distance within 10M
| Printer Specifications | |
| Resolution | 203DPI |
| Print Method | Direct Thermal |
| Memory | 8 MB Flash Memory/8 MB SDRAM |
| Max. Print Width | 4.25 in./108 mm |
| Max. Print Speed | Up to 6 ips (152 mm/s) |
| Media Sensors | Black Mark Sensor /Gap Sensor /Cover opening sensor |
| Emulation | TSPL,ZPL,EPL,DPL |

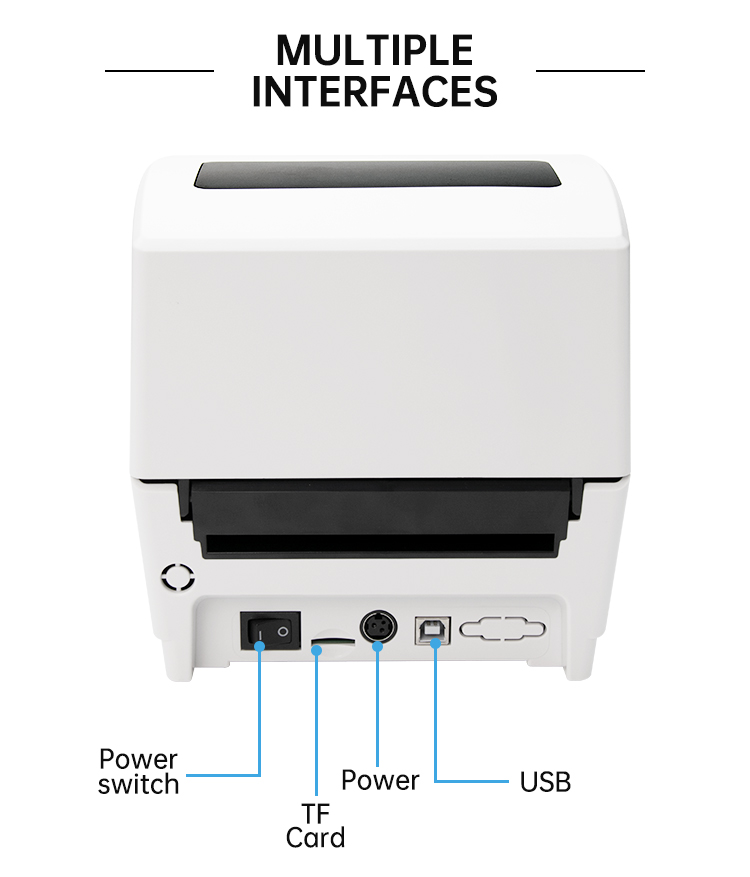

| Interface | Standard: USB2.0 (Optional: TF Card/Serial/ Bluetooth/Wi-Fi) |
| Media and Ribbon Characteristics | |
| Media Length | 10 mm~ 1778 mm (0.39 in.~70 in.) |

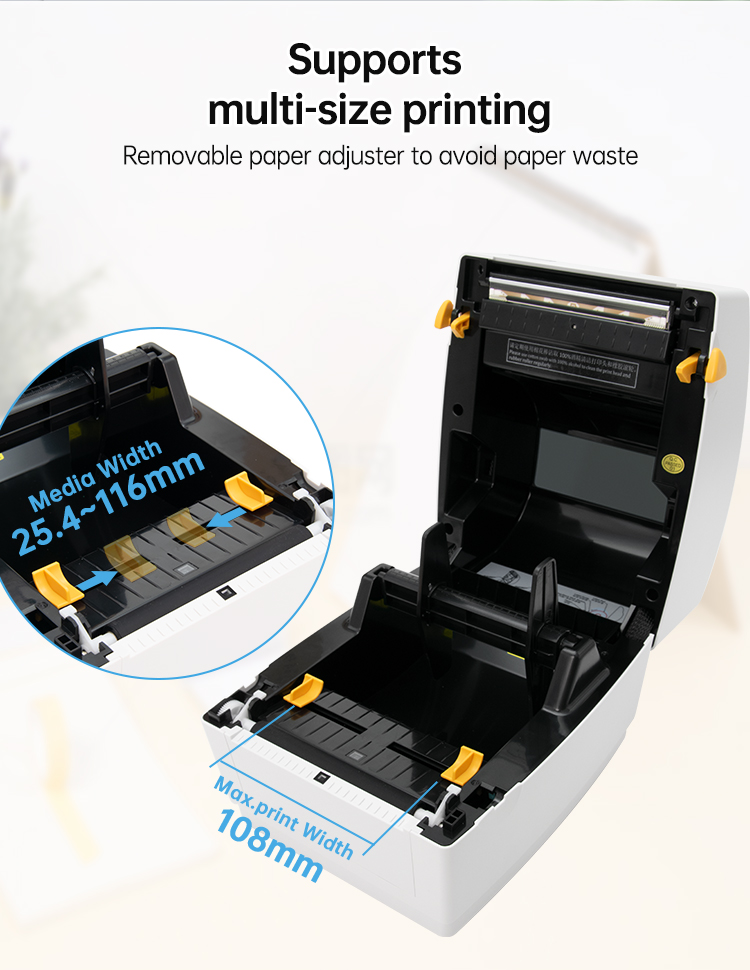

| Media Width | 25.4 mm~116 mm(1.18in.~4.56in.) |
| Media Thickness | 0.06mm~0.25mm(0.0023in.~0.0098in.) |
| Media Core Diameter | 25.4 mm~76.2 |
| Media Types | Continuous, Gap, Black mark, Fan-fold, Perforated Media |
| Environment Condition | |
| Operating Temp. | 5~40°℃ (41~104°F) |
| Storage Temp. | -40~60°℃ (-40~140°F) |
| Operating Humidity | 25～85% Non-Condensing |
| Storage Humidity | 10~90%Non-Condensing |
| Fonts/Graphics/Symbologies | |
| 1D Bar Codes | Code128 subsets A.B.C,Code128UCC, EAN128,Interleave 2 of 5,Code 39,Code 93,EAN-13,EAN-8, Codabar, POSTNET, UPC-A, UPC-E, EAN and UPC 2(5) digits, MSI,PLESSEY, China Post,ITF14, EAN14,Code 11,TELPEN, PLANET, Code 49,Deutsche Post Identcode, Deutsche Post Leitcode,LOGMARS |
| 2D Bar Codes | CODABLOCK F mode,DataMatrix, Maxicode,PDF-417,Aztec, MicroPDF417,QR code,RSS Barcode (GS1 Databar) |
| Accessories | |
| Standard Accessories | Power Adapter, Power Cord, USB Cable, User Manual, CD,Label spindle,Fixing tab*2 |
| User Options | 8″ External Paper Roll Holder |
| Power adaptor | Input:AC 100-240V, 1A, 50-60Hz; Output:DC 24V,2.5A, 60W |
| Product Warranty | |
| Printhead life | The earlier of 30 km usage or 1 year |
| Platen roller life | The earlier of 30 km usage or 1 year |
| Printer Warranty | 1 Year |
| Physical Characteristics | |

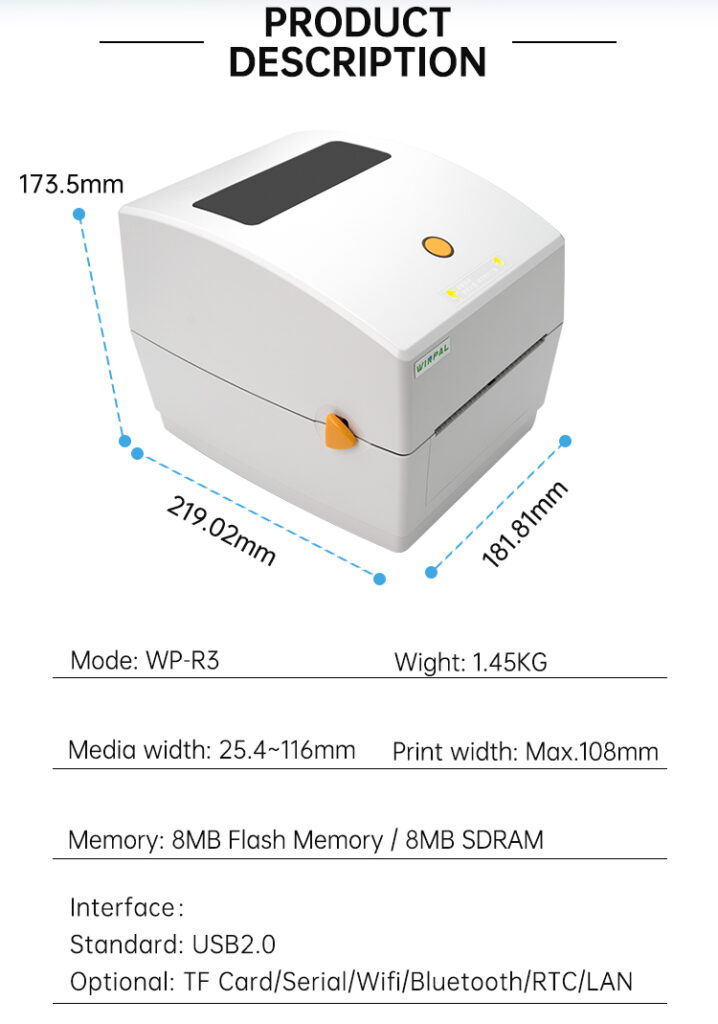

| Dimension | 219.02 mm× 181.81 mm ×173.5 mm(D ×W xH) |
| Weight | 1.45KG |
